Date started: November 2019

Leads: Laura Taalman

Abstract

We used OpenSCAD sweeper code to produce a model of the knot 8_19 with a star-shaped cross section, then extracted SVG images of planar cross sections from both symmetric and non-symmetric knot orientations in R3. These cross sections are interesting from a mathematical perspective, as they aid in understanding the internal structure of the knot. In addition we can use these cross sections to create stylized motifs to use in surface design patterns. Future directions include exploration of knot complements using laser cut slices.

Media

Early stage of 3D print showing the star cross-sections

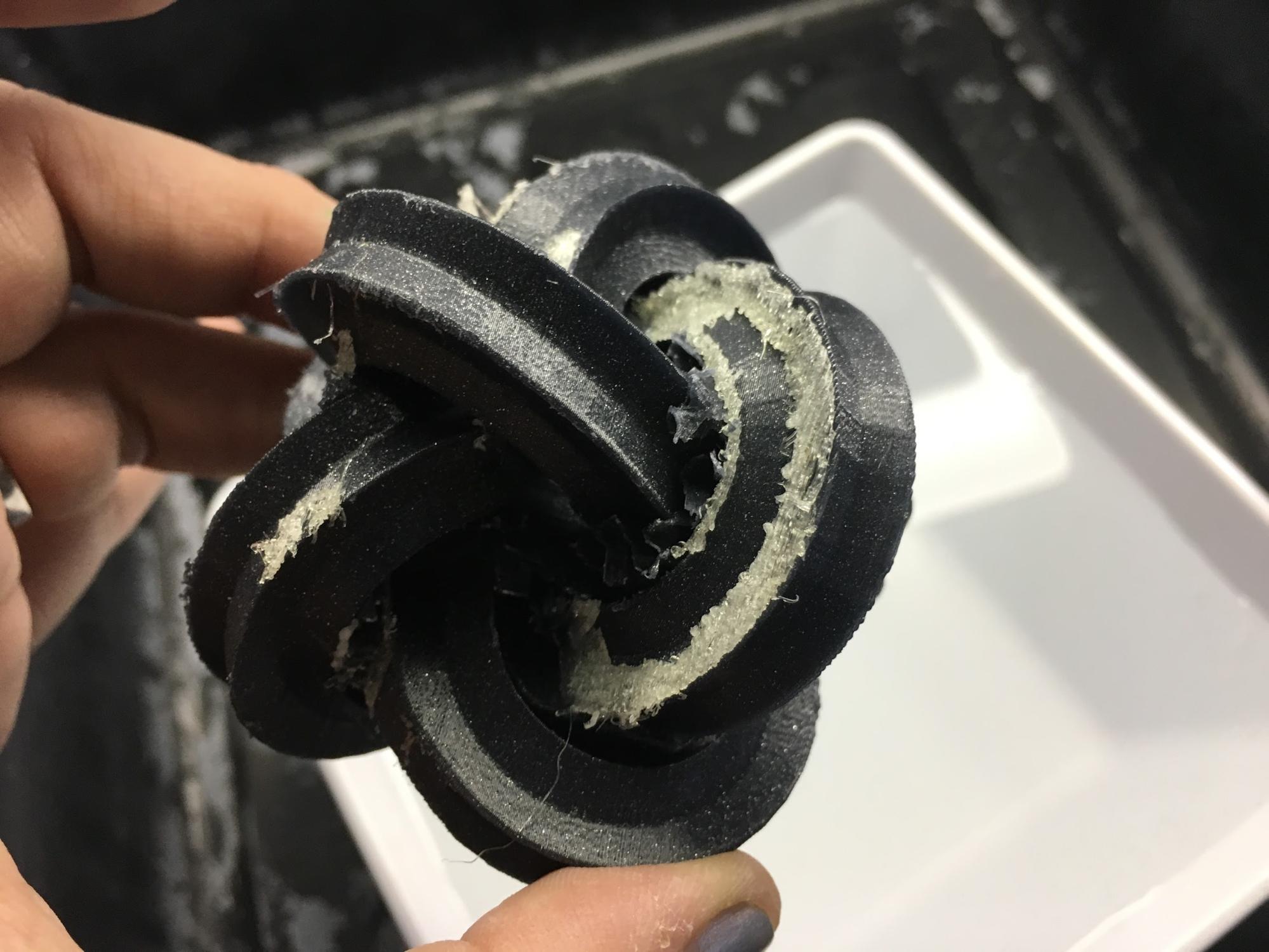

Main supports removed; preparing to dissolve interface support

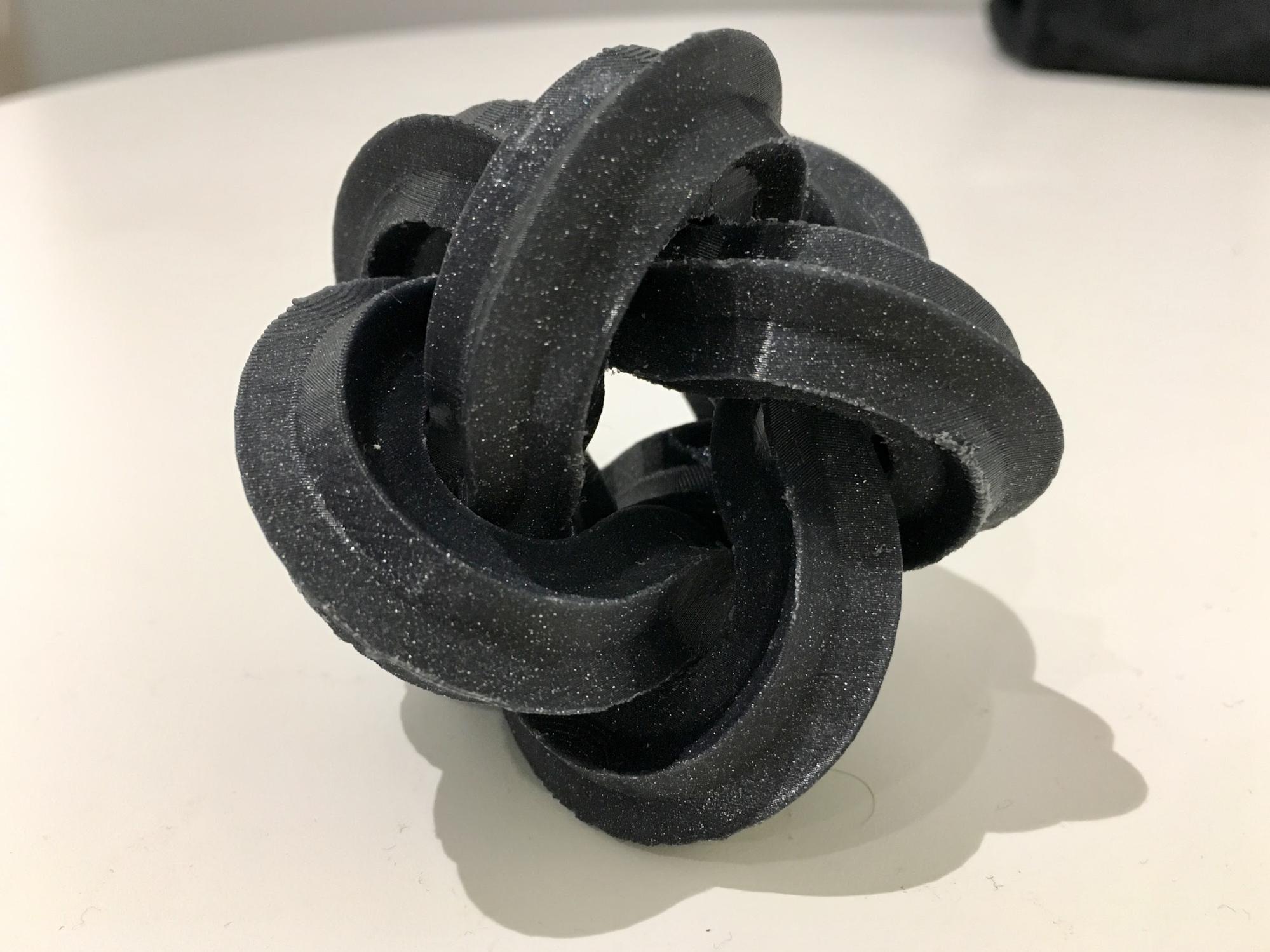

Finished model of star-crossed knot 8_18

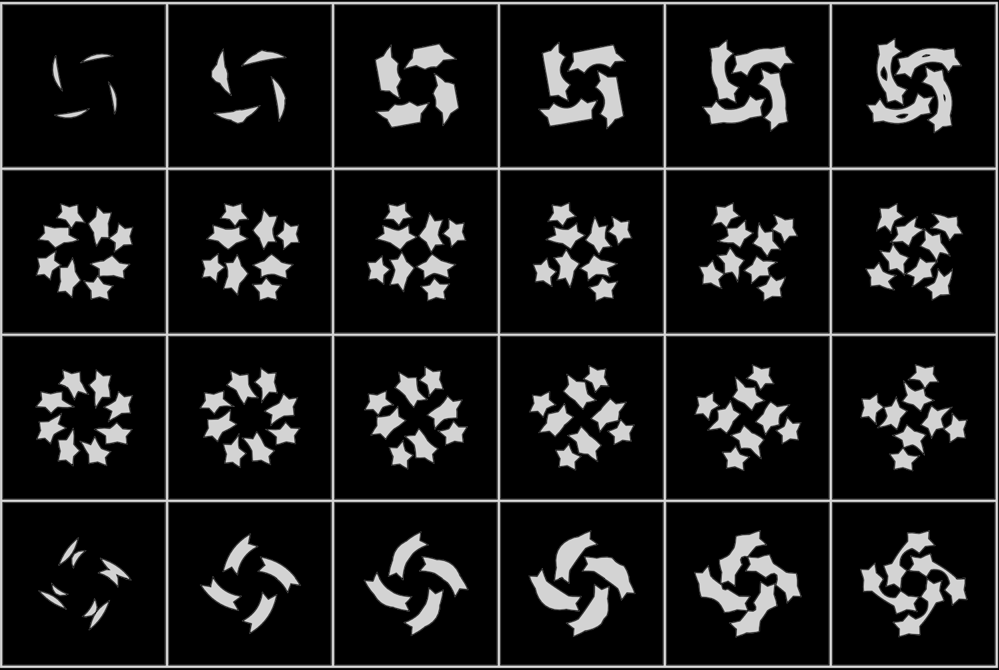

Slices of star-crossed knot 8_18 from a symmetric orientation

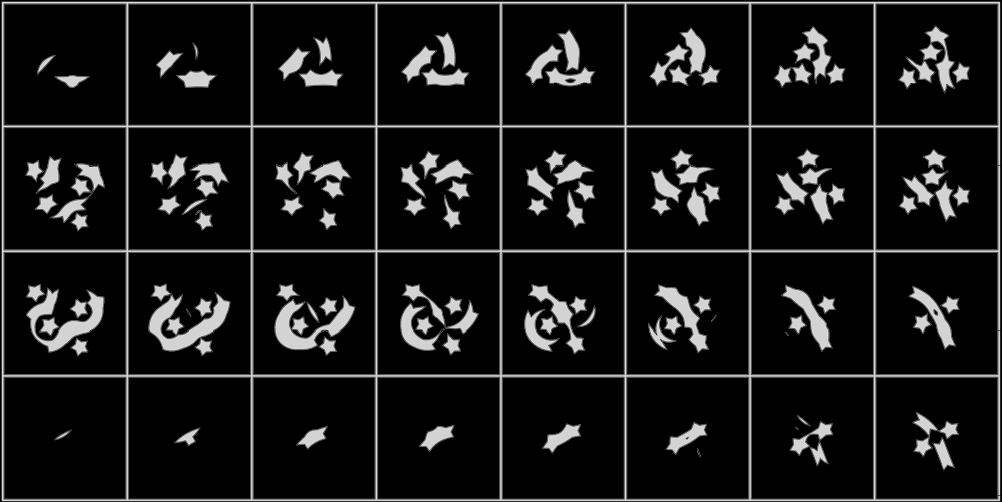

Slices of star-crossed knot 8_18 from a non-symmetric orientation

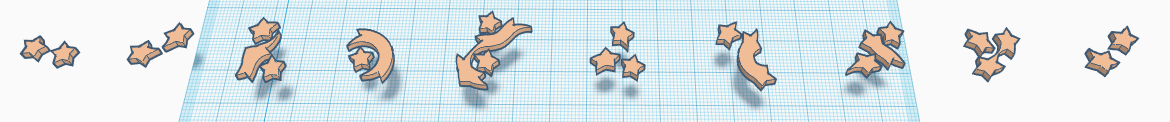

Selected 3D elements

Motifs taken from selected 3D elements of knot slices

Half-drop surface design pattern with two repeat scales

Next steps are to explore sliced star-crossed knot complements using a laser cutter and transparent acrylic, in the spirit of this simpler trefoil example from our sliced knot complement project:

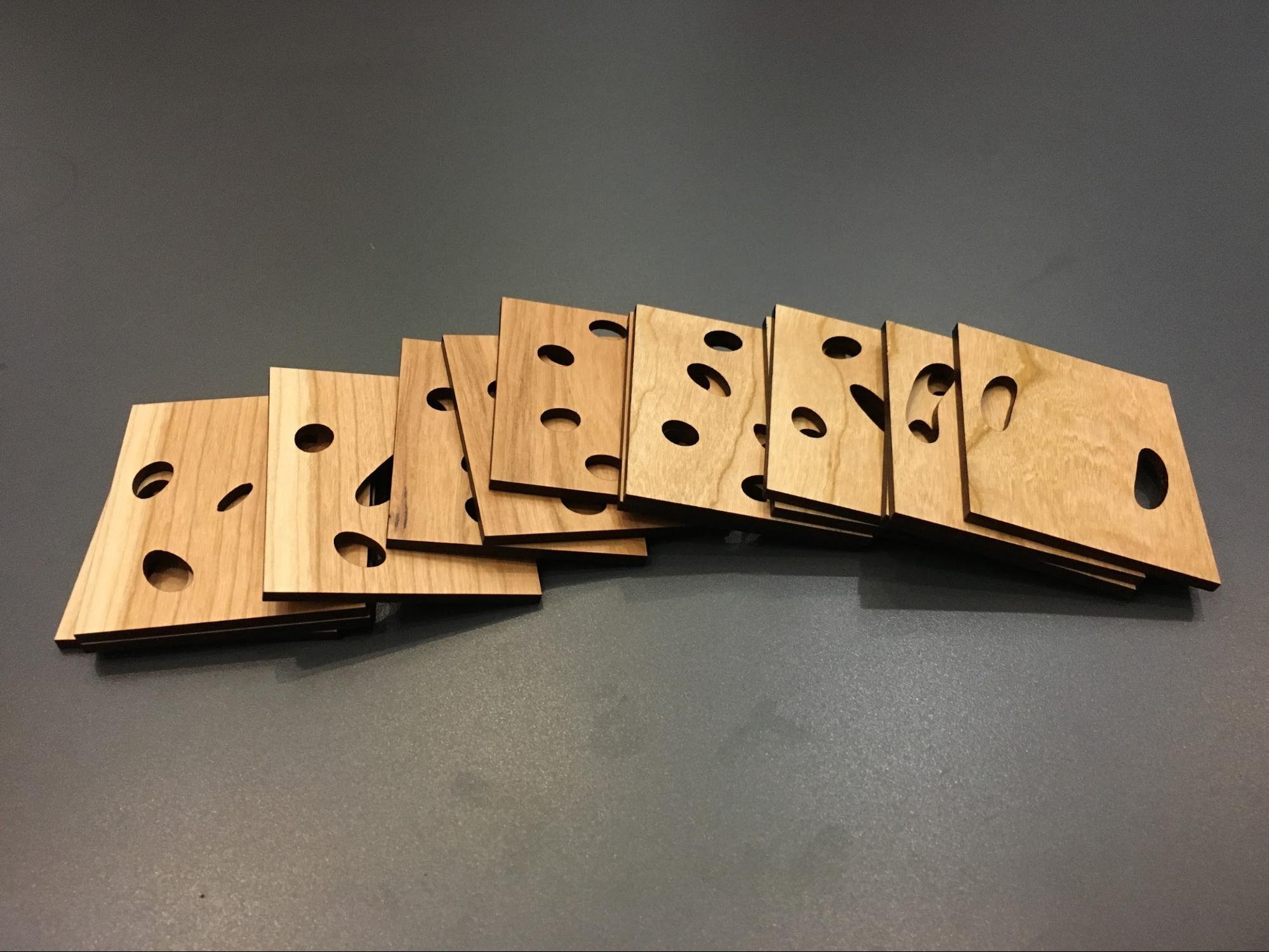

Laser cut slices of the complement of a tritangentless trefoil knot
